abbreviations

• NN = neural network
• LS = latent space

background on diffusion

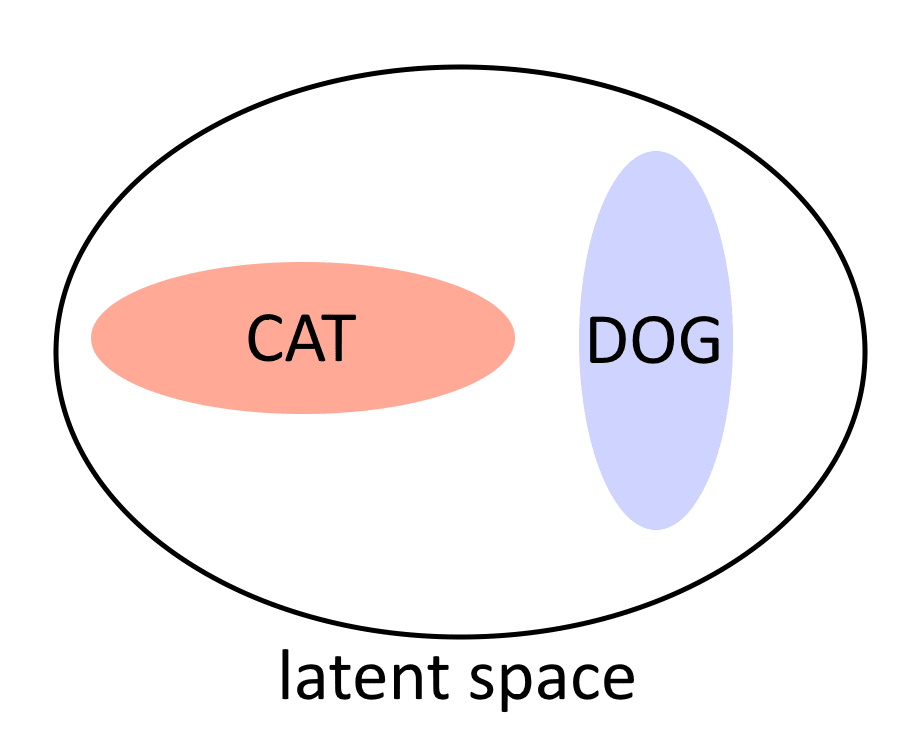

NN autoencoders can be trained to convert between images and a LS where distance corresponds to image similarity. Like how most images are just "noise", most of that LS does not correspond to meaningful images. For simpler explanation, let's consider a simplified diffusion-based image generation model. It has a 2-dimensional LS, and 2 image categories: cats and dogs.

The "unconditional generation" task is to find a random point in the image LS which is inside any meaningful region. The "conditional generation" task is to find a meaningful point in image LS that would also be close to a target position in a description LS.

Training a diffusion NN involves taking real image LS points and creating a multistep path between them and random image LS points. The diffusion NN is trained to reverse those steps.

By training a new diffusion NN to replicate multiple diffusion NN steps (a type of distillation) it's possible to do the diffusion process in fewer steps. That technique is done in the SnapFusion paper which gets good results with just 8 steps. The number of diffusion steps can be adjusted, but using fewer steps gave worse results.

the problem

Why are multiple steps needed for good results? Why can't the "diffusion" be done in a single step? I believe the problem is related to LS structure.

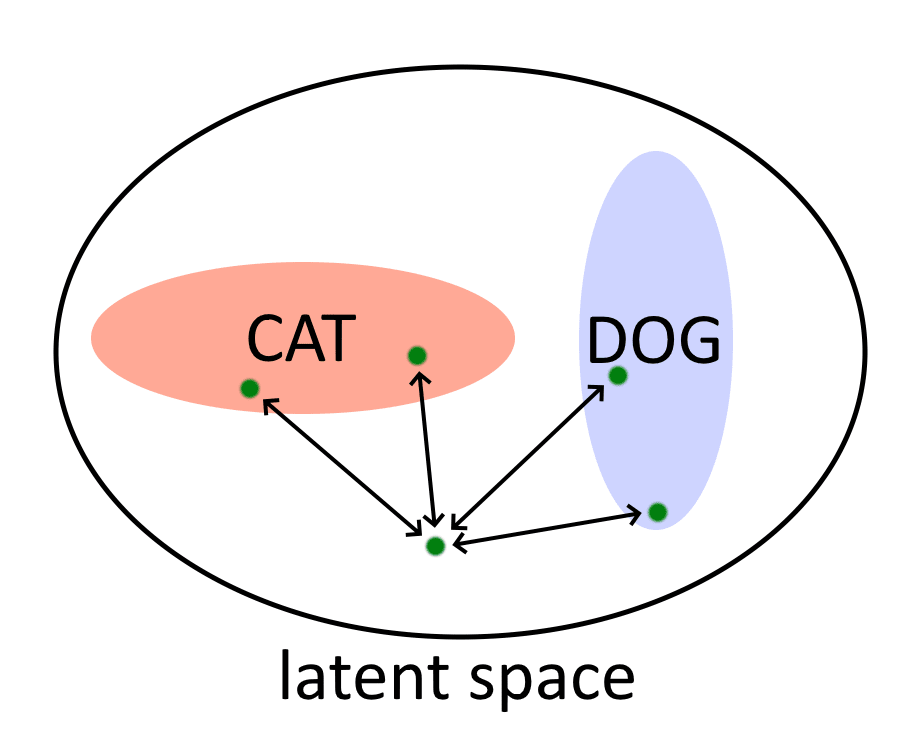

Consider a random point P outside CAT and DOG, conditioned on a tag "animals" which may go to either region. The diffusion NN may be trained to direct the same (or nearly-identical) input to multiple different targets.

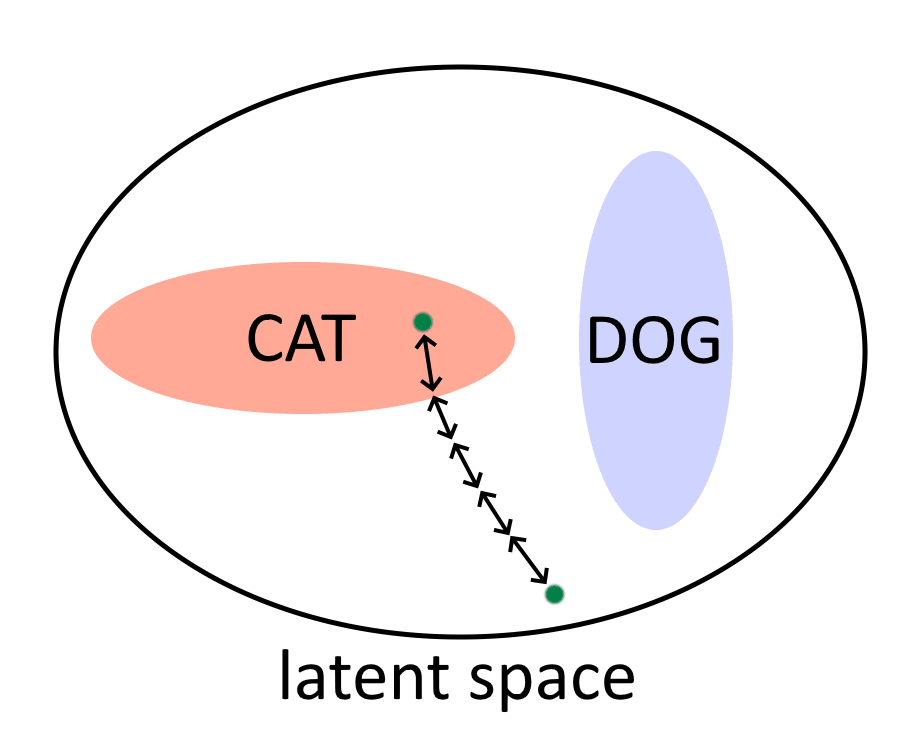

As a result, the diffusion NN will not provide an accurate direction from points that are far from meaningful target areas. That makes it necessary to use many small steps, both to "average out" diffusion NN output and to progressively get closer to regions where diffusion NN output is more accurate.

proposed solution

By training a NN to produce output which is more consistent and smooth than what diffusion NNs are trained to produce, we can reduce the above problem. To distinguish such NNs from diffusion NNs, I propose the name "coalescer networks".

Here is a process for training and using coalescer networks:

setup:

1. Train autoencoders for images and text.
2. From an image-description pair dataset, use autoencoders to make many image-description embedding pairs.
3. Put the image-description embedding pairs in a vector database, indexed by concatenate(desc_scale * description_embedding, image_embedding) where the hyperparameter desc_scale > 1.

training step:

1. Choose a random description embedding DE and a random point R in image LS.
2. Use vector search to find a point pair close_pair which is close to concatenate(desc_scale * DE, R).
3. Train the coalescer NN to do: (R, close_pair.description) -> (target_distance, target_direction) where target_distance is distance from R to close_pair.image, and target_direction is a vector pointing from R to close_pair.image.

The training for direction can change quickly in some regions where distance is similar. By separating those outputs, we can keep output smooth by shrinking target_direction where direction changes rapidly. The magnitude of target_direction is then an indication of direction accuracy.

Training loss for target_distance could be: (target_distance - magnitude(R - close_pair.image))^2.

Training loss for target_direction could be: sqrt(magnitude(target_direction - normalize(close_pair.image - R))).

generation process:

1. Choose an image description, and find its embedding DE using the text autoencoder NN.
2. Choose a random image LS point R.
3. Use the coalescer NN to do (R, DE) -> (target_distance, target_direction). If target_direction is very small, repeat steps 2-3.
4. Find target_point = R + normalized(target_direction) * target_distance.
5. Optionally, repeat the coalescer NN process from target_point. The number of steps may depend on target_direction magnitude.
6. Use the image autoencoder to convert target_point to an image.

Coalescer networks should generally give good results in 2 steps.

impact statement

My hope is that this technique will improve the speed of image generation tools, thereby reducing the disparity of image generation capability between individuals and large institutions, and thereby ultimately having a net positive societal impact.
