In Parts 1, 2, and 3 we estimated how fast a post-AGI economy could grow using existing or historically observed production techniques, grounded in US input-output data. That approach gave us confidence that the methods we assumed were physically realizable, because they correspond to manufacturing processes that have run at scale in the past or run today. Now I would like to relax that constraint, and ask how much faster the economy could grow using more advanced technology.
In this part, we will consider energy production. Every physical process consumes energy, and it takes energy to build the production and distribution system that generates energy. The energy payback time (EPBT) for a system is defined as the time required for it to produce the amount of energy required to build it. If, for example, a solar panel requires 100 MJ to construct from raw materials and produces 10 MJ per day, the energy payback time would be ten days. Any economy relying on such panels for energy production has a maximum growth rate that is bounded by this payback time:
Even if everything else is essentially free, the solar panels could not reproduce faster than this, and this would bottleneck growth of the entire economy.
We investigate what energy system minimizes the energy payback time, subject to being plausibly constructible on Earth using known physical methods, optimized for rapid production in a post-AGI regime, and allowing for decades of engineering advances. The payback time is bounded below by two physical quantities: the mass of material each function requires, and the energy it takes to produce each kilogram of material. Neither can be pushed below its physical and engineering limits, however advanced the technology. We bracket out for now atomically precise manufacturing and other speculative technologies.
This series grew out of a project initiated by Holden Karnofsky, with substantial earlier work by Constantin Arnscheidt and Adin Richards. I'm grateful for comments on this post and/or earlier iterations of the project from Holden, Constantin, Adin, Paul Christiano, and Tom Davidson. Thanks also to Claude Opus 4.7 and 4.8 for help with all aspects of this project.
With current technology, energy production is the most tightly bottlenecked sector
Every sector in an economy produces goods for every other sector, including itself. Energy production requires energy, but steel mills also require steel, and machinery is produced using machinery. The payback time for a sector is the time required for the capital in that sector to produce enough output to replace itself, including all inputs that flow in indirectly through the production cascade. Each sector's payback time provides an upper bound on the overall growth rate. Appendix H.1 derives this bound and sets out how the payback times are computed.
Using the BEA 2017 input-output tables and the same setup as Part 3 — robots and compute replacing human labor, factories operating at emergency utilization, and removing capital that only exists to service human labor — we can calculate the payback time of each sector. The left side of the table shows current technology. The right side shows an electrified economy where fossil-fuel energy inputs are replaced with electricity and the electric power sector is built from utility-scale solar panels. The bottom row shows the Von Neumann growth rate for the economy as a whole, which as discussed in Part 1 is the overall maximum possible growth rate.
Sector
Current: Payback (yr)
Current: Growth bound (yr⁻¹)
Electrified + solar: Payback (yr)
Electrified + solar: Growth bound (yr⁻¹)
Oil and gas extraction
0.111
9.0
0.011
88.6
Electric power generation
0.082
12.3
1.566
0.64
Machine tool manufacturing
0.079
12.6
0.079
12.6
Machine shops
0.052
19.1
0.053
18.9
Iron and steel
0.050
20.1
0.053
19.0
Material handling equipment
0.046
21.9
0.046
21.9
Compute
0.028
35.8
0.028
35.6
Maximum growth rate ()
—
1.15
—
0.48
The sectors involved in energy production — oil and gas extraction and electric power generation — have the longest payback times of any sector. This is particularly clear for the electrified economy where solar panels are used to generate power: electric power generation alone becomes the binding sector, with a payback time of 1.6 years, well above any other sector and close to the full-system growth rate at the bottom of the table. Fossil fuels would allow faster growth but would lead to vast CO emissions long before reserves ran out.
We can compare our numbers to energy payback times estimated in the literature, computed bottom-up from a technology's embodied energy and output:
The delivered column counts the output as the electricity produced, which is the one most relevant for our purposes. The primary column shows the more common LCA primary energy convention (Frischknecht et al. (2020)), which measures the thermal energy required to produce that electricity. These bottom-up estimates broadly match the IO-derived payback times, showing energy payback times are around one year across present-day energy production methods.
While energy production is the most binding of the sectors, it is not the only constraint. If energy were entirely free in the IO model — zeroing all energy inputs — the maximum growth rate rises from 1.15 to about 1.5 yr⁻¹. Once energy is free, the capital-goods sectors that build everything else, such as machine tools and steel, become the binding constraint instead. Speeding up energy production is necessary for fast growth, but not sufficient on its own.
Making materials requires energy
Producing materials from the raw resources available in the Earth's crust and atmosphere requires some minimum amount of energy. The second law of thermodynamics sets a hard lower bound on the energy required for any given transformation, called the Gibbs free energy of synthesis, which can be calculated from standard thermochemical tables.
The energy that current industrial processes actually consume to produce a kilogram of material — its embodied energy — lies above the Gibbs minimum. Embodied energy is conventionally reported in primary-energy terms, counting electricity at the fuel needed to generate it rather than at its delivered value. The values plotted below are taken from the engineering materials database in Ashby (2021) and inherit this convention.
Figure 1. Embodied energy of production (from Ashby (2021) Appendix B) vs the thermodynamic floor on synthesis from natural feedstock (computed from CRC thermochemistry dataset) for 123 materials. (a) Full range. Left-edge markers show the 11 materials with negative Gibbs floors. (b) Zoom on the bulk of the data, where bulk metals, polymers, ceramics, and electronics cluster.
Most materials have Gibbs floors between a few MJ/kg and a few tens of MJ/kg, as determined by the basic thermochemistry of reducing elements from their naturally occurring forms. The exceptions are materials like cement, whose feedstock is already in the oxidation state of the finished product, and sulfide-derived metals like copper, where the oxidation of sulfur to sulfuric acid releases more energy than the metal reduction consumes, making the net Gibbs free energy negative.
Bulk industrial processes are already fairly close to their thermodynamic floors. The figure makes the gap look larger than it really is, because embodied energy is reported in primary-energy terms and includes the thermal-conversion inefficiencies of fossil-fueled electricity and heat. Under directly electrified inputs, much of that gap closes. World best practice energy intensity for iron and aluminum is within a factor of about two of the Gibbs floor (Worrell et al. (2008)), and these ratios have barely moved in decades of sustained engineering effort. Pushing energy efficiency closer to the thermodynamic floor typically requires more sophisticated equipment, such as additional heat-recovery stages, and more controlled reaction environments, which increases the physical capital cost of the plant itself. Improvement is often difficult even where current methods sit far above the floor; titanium, for example, is still made by the same energy-intensive process because every attempt to replace it has failed.
The gap between current embodied energy and the Gibbs floor varies widely by material. For some materials the gap is dominated by the thermodynamic cost of concentrating a dilute resource from bulk ore. As an example, mining copper requires processing roughly 200 tonnes of rock per tonne of metal, and the energy cost of that comminution dwarfs the synthesis chemistry (Ballantyne and Powell (2014)). For others, finite-rate process irreversibilities and heat losses account for most of the difference (Bejan (1996)), and further improvements are either difficult or uneconomical.
A minimal solar power system could pay back its embodied energy in days
Our aim is to estimate the embodied energy of a minimal energy production and transmission system, aggressively designed for rapid reproduction. Solar, fossil fuels, and nuclear could all in principle power a much larger economy; other options like wind or hydro are too limited in scale. At the physics floor, all three have payback times on a similar scale of days to weeks. We focus on solar because the other two have practical constraints that make them poor candidates for sustained rapid growth. Fossil fuels are finite in supply and produce CO emissions. Nuclear fission requires large individual facilities whose long construction times would impose substantial lags. Fusion would likely face even worse large-facility lags, and remains speculative.
A complete solar power system has three types of component, each with its own physical floor on embodied energy:
Panel. The active absorber needs to be at least a few hundred nanometers thick to capture sunlight, but protecting this absorbing layer requires additional moisture barriers and polymer film.
Electrical infrastructure. Collecting, converting, and transmitting power requires conducting material, and the mass required scales with the power carried and the distance.
Storage. Storing energy for nighttime use requires a storage medium, and there is only a fixed amount of energy that can be stored per kilogram of material.
We design every component for one year of service rather than the twenty-five years typical of current solar installations. Today's silicon panels at utility scale take about a year to pay back their embodied energy, but most of their mass exists to support decades of outdoor durability. In an economy whose energy fleet doubles every few months, each cohort only needs to outlive its own replication time and so it is more efficient to create short-lived panels. Some components require technology that is not yet commercially scaled — most notably perovskite tandem absorbers — but the design is optimized to minimize energetic costs. The design was developed with the help of Claude Opus 4.7; Appendix I.1 works through each component in detail.
The table below shows the embodied energy breakdown and energy payback time for the complete system at different transmission distances, at both current embodied energies and the Gibbs floor.
Scenario
Current costs (MJ/W): Panel
Current costs (MJ/W): Elec.
Current costs (MJ/W): Storage
Current costs (MJ/W): Total
Gibbs floor costs (MJ/W): Panel
Gibbs floor costs (MJ/W): Elec.
Gibbs floor costs (MJ/W): Storage
Gibbs floor costs (MJ/W): Total
Energy payback time (d): Current
Energy payback time (d): Gibbs floor
No storage
0 km
0.102
0.048
—
0.15
0.031
0.007
—
0.04
1.7
0.4
100 km
0.103
0.130
—
0.23
0.031
0.037
—
0.07
2.7
0.8
500 km
0.108
0.473
—
0.58
0.033
0.163
—
0.20
6.7
2.3
1000 km
0.114
0.948
—
1.06
0.035
0.336
—
0.37
12.3
4.3
3000 km
0.149
3.57
—
3.72
0.045
1.28
—
1.32
43.1
15.3
With storage
0 km
0.138
0.065
0.166
0.37
0.042
0.009
0.048
0.10
4.3
1.2
100 km
0.139
0.111
0.167
0.42
0.042
0.027
0.048
0.12
4.8
1.4
500 km
0.146
0.304
0.170
0.62
0.044
0.100
0.048
0.19
7.2
2.2
1000 km
0.154
0.572
0.174
0.90
0.047
0.200
0.048
0.30
10.4
3.4
3000 km
0.201
2.06
0.190
2.45
0.060
0.746
0.048
0.85
28.4
9.9
The energy payback time is sensitive to transmission distance: at 1000 km with storage, it is about 10 days at current embodied energies and 3 days at the Gibbs floor. Storage adds cost at short distances but saves conductor mass at long distances, with the crossover between 500 and 1000 km. While the precise numbers should not be taken too seriously, the embodied energies are spread across many materials and components and so an O(10-day) payback seems fairly robust even given the uncertainties. The Gibbs floor is roughly three to four times lower than current embodied energies across all configurations.
Energy payback is one constraint on a solar buildout. Material supply is another, and does not bind until the buildout is very large. The table below shows the mass of each potentially-constraining element required to build the system at four deployment scales, against world reserves and resources.
Element
Mass required for (Mt): 18 TW(Current)
Mass required for (Mt): 100 TW
Mass required for (Mt): 1 PW
Mass required for (Mt): 6 PW(All land)
Global availability (Mt): Reserves
Global availability (Mt): Resources
Dominant source
Carbon
67
374
3,741
22,294
1,000,000
$\geq$7,500,000
coal, oil, gas
Cesium
0.06
0.31
3.1
18.3
$\leq$0.19
—
pollucite
Copper
15.9
88.4
884
5,269
980
1,500
chalcopyrite porphyry
Iodine
1.6
9.1
90.8
541
6.3
$\geq$90,000
caliche and brine deposits
Iron
495
2,751
27,512
163,971
87,000
$\geq$260,000
hematite, magnetite, taconite
Lead
1.1
6.1
60.6
361
95
$\geq$2,000
galena
Nickel
4.7
25.9
259
1,546
140
$\geq$350
laterite, pentlandite sulfide
Tin
0.22
1.2
12.4
73.9
6.0
—
cassiterite
Zinc
0.38
2.1
21.0
125
240
1,900
sphalerite
Reserves and resources are from USGS MCS 2026, while fossil carbon is from OPEC (2025) and the Energy Institute (2024). As we can see, iodine and cesium exhaust current reserves around 100 TW, a few doublings of world power. Iodine could be extracted from seawater if necessary, albeit at higher cost; obtaining cesium could be more challenging, but is only needed for the perovskite active layer; alternative designs with no cesium should be possible. Tin binds near 1 PW, while copper would begin to bind only once most land area has been covered and other elements are available in abundance.
As the payback time shrinks, supply-chain lags become the binding constraint
The EPBT calculation in the previous section divides cumulative energy out by cumulative energy in, with no attention to when the energy is committed. In reality, it takes time to process and transport materials, which means that this energy must be committed days or weeks prior to first power production. For an exponentially-growing economy, energy committed at lag before delivery is more expensive by a factor of , and this decreases the maximum achievable growth rate.
To compute the lag-adjusted rate , we estimate how far ahead of the system's first watt each step in the supply chain commits its energy, inflate that energy by , and solve the resulting fixed point. For now we assume the supply chain is co-located, so no material spends time in transit: the only lag is the time each material spends being physically transformed.
The table reports and the energy-weighted mean lag for each scenario; the per-step durations are in Appendix I.2 and the fixed-point calculation in Appendix H.2.
Scenario
Current: EPBT (d)
Current: (d)
Current: (yr⁻¹)
Current: (yr⁻¹)
Gibbs floor: EPBT (d)
Gibbs floor: (d)
Gibbs floor: (yr⁻¹)
Gibbs floor: (yr⁻¹)
No storage
0 km
1.7
1.8
210
109
0.4
1.4
827
278
1000 km
12.3
2.1
30
26
4.3
2.2
85
59
With storage
0 km
4.3
2.7
85
54
1.2
2.2
317
133
1000 km
10.4
2.4
35
29
3.4
2.4
107
68
The mean lag is short because little time is required to physically manufacture and assemble the parts given an abundance of robotic labor, no transport delays, and just-in-time manufacturing. The longest individual steps are copper and nickel electrorefining at about a week each, but they feed mass-light components carrying little of the system's energy, so they barely move . The diurnal cycle provides a hard floor, as a field commissioned at sunset cannot produce anything until sunrise.
Even with AGI, some dead time will occur at each link in the supply chain. We model it as a transport time, but it stands for every per-link delay not already counted in a step's processing — loading, storage, transfer, and literal transport alike. Figure 2 shows how the growth rate falls as we add a fixed such delay to every link in the supply chain, in our 1000 km scenario:

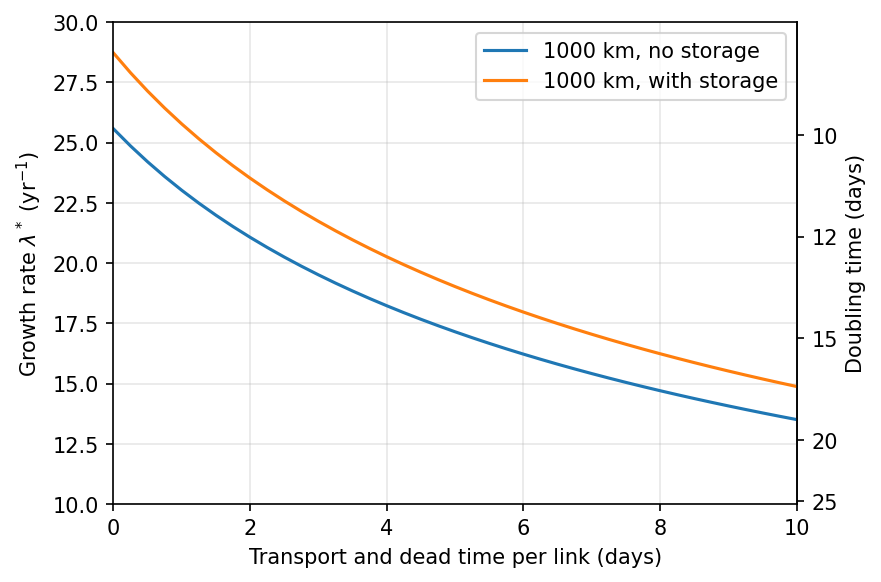

Figure 2. Maximum sustainable growth rate \lambda^* as a function of uniform transport and dead time per link, for the 1000 km transmission scenario at current embodied energies. Each piece of energy passes through two to three transport layers between raw extraction and deployment, so the effective lag stretch is two to three times the per-link transit time.
A few days per link would already outweigh the day or two of physical processing, so beyond short delays the lag is set by these per-link times rather than by fabrication. Even with ten days per link the shortest doubling time remains on the scale of weeks. With co-located factories and with AGI optimization I expect most delays could be reduced to less than a day, though some raw material might need to be transported longer distances.
Even counting the factories, energy production does not preclude doubling in weeks
So far we have estimated the energy required to expand the capacity of the electrical grid. But the grid is built by factories and machines that mine, smelt, manufacture, transport, and assemble everything, and building that capital takes energy too.
Consider a product that takes MJ to make directly, on a machine that produces units a day and took MJ to build. Spread over the output of a period , the machine adds to each unit, so the energy per unit is
Most physical capital lasts many years or decades. If capital costs are amortized over this entire lifespan then days and thus capital contributions to the embodied energy are negligible, reducing costs to the that we calculated in the previous section.
But in a rapidly growing economy we do not have time to amortize over the lifespan of the capital. If the economy grows exponentially at rate , the average age of any piece of capital is and thus the amortized cost becomes
For example, at a growth rate of 0.1 day⁻¹ the average age of any piece of capital is days and so we would find that MJ, which is considerably greater than . The two contributions are equal at the breakeven time days — the time a machine must run for the energy passing through it to equal the energy that built it, with
Amortized over longer than the direct energy dominates, over shorter the capital does.
Building a solar grid takes many distinct processes, and each one is a machine of exactly this kind. Step requires some direct energy, which on its own would add a time to the payback time; it runs on capital with its own breakeven time , which inflates that contribution to , just as the single machine's did. Summing over every step gives the total payback time:
where
is the payback time if capital were free, and
accounts for the capital costs. The growth rate satisfies , but itself rises with , since faster growth leaves the capital younger and less amortized. Solving that self-consistently gives a quadratic in :
As described in Appendix I.3, we estimate breakeven times for the various processes required to build the grid and then use this to compute and . For a 1000 km grid with storage, the ten largest contributions to account for roughly 90% of the total and are as follows:
Process
Direct (d)
Breakeven (d)
(d²)
Aluminum smelting cell
2.97
16
46.1
Transmission-tower fabrication
0.37
78
28.9
Silicon power-device fab
0.12
151
17.3
Copper smelt and refining
0.38
21
7.9
Fe-N-C catalyst pyrolysis
0.05
150
7.5
Final-leg transport fleet
0.18
38
6.6
Field-deployment fleet
0.03
242
6.0
Iron-air dry cooler
0.19
28
5.2
Iron-air cell assembly
0.13
40
5.0
Nickel refining
0.41
12
4.9
All other steps
5.59
—
18.4
Total
10.4
15
154
From this, we can compute that yr⁻¹, down from yr⁻¹ if capital were free.
Extending to all four designs, with the no-storage cases carrying a peak-sizing penalty on their daylight-only building capital:
Scenario
(d)
(d²)
Growth bound (yr⁻¹): No lag
Growth bound (yr⁻¹): Lagged
Doubling bound (d): No lag
Doubling bound (d): Lagged
0 km, no storage
1.7
77
38
27
6.7
9.2
0 km, with storage
4.3
66
35
25
7.3
10
1000 km, no storage
12.3
443
13
11
19
23
1000 km, with storage
10.4
154
20
16
13
16
The lagged columns also charge the time it takes to build the factories, on top of the supply-chain lags carried over from the previous section. A plant has to produce its own materials, be assembled, and be brought up to operating temperature before it makes anything, and that delay inflates its embodied energy by the same those lags carry. We estimate each plant's build time from its bill of materials, as worked through in Appendix I.3.
The estimates so far assume co-located production. In practice the materials feeding both the grid and the factories that build it move between processing steps, and every leg adds dead time. Figure 3 shows the bound falling with transport and dead time per link for all four designs, charging transport on the grid's materials and the factories' alike. Across all four designs the shortest doubling time stays between about ten days and a month, even allowing twelve days of transport delay on every link in the chain.

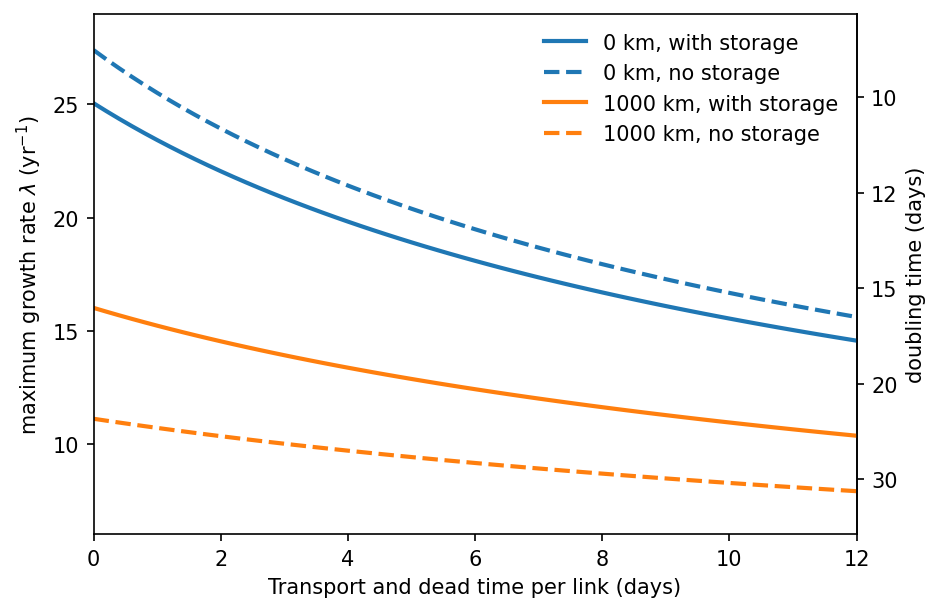

Figure 3. Maximum growth rate as a function of transport and dead time per link, for all four designs (0 and 1000 km transmission, with and without storage) at current embodied energies. Transport is charged on every material, the grid's own and the factories' alike, which travel the same supply chains; the no-storage curves additionally carry the peak-sizing penalty on the building capital. Across the whole range the doubling time stays on the scale of weeks.
Discussion
A minimal solar generation and distribution system, designed for fast reproduction rather than long service, can generate enough energy to reproduce itself on the scale of weeks. That holds even after including construction lags, the transport of materials, and the physical capital of the factories that build it. That is an order of magnitude faster than present-day energy production. The system is not especially sophisticated. It needs abundant robot labor and a few technologies that are not yet deployed at scale, most notably perovskite tandem cells, but the main lever is just optimizing for low material use and accepting short lifetimes in return.
Whether the whole economy can double this fast turns on whether some other sector binds harder than energy. Given our estimated costs for mining and smelting in the appendices, and payback times for the associated sectors in present-day input-output tables, I think these are unlikely to substantially slow growth. However, creating more complex machinery like transportation devices, robots, and silicon chips requires much longer supply chains and more advanced manufacturing processes. It seems plausible that these could be more constraining, but they are harder to reason about from first principles than energy production or bulk resource acquisition.
Could it go faster still? Biology shows that much faster self-replication is possible. The fastest cyanobacteria and microalgae double every couple of hours in good conditions. But they cannot generate electricity, hold stable macroscopic structure, or move energy over long distances, so nothing algae-like could power a real economy.
Advanced nanotechnology need not share biology's limitations, but it does not escape the physics either. A nanotech system that stores power overnight and moves it across the country pays the same storage and transmission costs that dominate our estimate; its batteries are bound by the same bond energies and its conductors by the same transport physics, and it stays in the weeks-scale regime we have estimated. But if the nanotechnological economy can avoid transport and perform all of its tasks locally, then the binding constraint becomes the thickness of the solar panels themselves, and we cannot rule out doubling times of several days for energy production from energetic cost considerations alone.
In Part 1, Appendix A, we introduced the input-output description of the economy, in which the matrices , , and record, per unit of a sector's output, the intermediate inputs it consumes, the capital it holds, and the capital that wears out each year. With all output reinvested, the maximum growth rate satisfies the eigenvalue equation:
where the associated eigenvector gives the distribution of sectors that maximizes growth. We can rearrange it into the more conventional eigenvalue form
where we introduce the matrix
Examining this series, we see that the matrix entry is the total output of sector required to build and maintain the capital behind one unit of sector 's output. In particular, the diagonal entry gives the total output of sector required to increase that sector's production rate by a unit amount, which is simply the payback time for the sector.
Every entry of is non-negative, so by the Perron-Frobenius theorem it has a unique largest eigenvalue with a strictly positive eigenvector. For any other matrix that satisfies
for every entry, it is straightforward to show that
If we only estimate some entries of and set the remainder to zero, the resultant matrix will thus provide us with an upper bound on the growth rate:
and, in particular,
for every sector in the economy.
In the main text, we focus on the energy production sector , with the energy payback time corresponding to . This payback time includes all of the energy required to manufacture and assemble the various components of the power grid, given the requisite machinery and other physical capital, but does not include the costs of that capital. Those costs are included in the off-diagonal entries , which gives the energy required to increase sector 's output, and the column entry which tells us how much of sector output is needed to increase energy production. Setting all other entries of to zero, we thus find that:
which, with and , is equivalent to the quadratic growth bound used in the main text.
The most general way to treat lags is to let the input-output coefficients depend on the time between an input being committed and the output it serves appearing. In place of the constant matrices of H.1 we have kernels , , and , and the material balance becomes
with each flow referenced at the time of the output it serves rather than the earlier time it is committed. For the maximal-growth solution , every shifted flow becomes , and we find that
where we define
We can collect these lagged operators into a matrix
so that the maximum growth rate satisfies:
As in the previous section, we can upper bound by considering the diagonal payback times:
Rearranging the infinite series that defines , it is straightforward to show that
where is the lag-free energy payback and gives the fraction of this energy that must be committed at lead time . We thus find that
which we can solve numerically to bound .
Appendix I: The solar electricity system
<a id="i.1-system-design"></a>
I.1 System design
The main text described the system as three components — the panel, the electrical infrastructure, and storage. This appendix sizes each in detail, designing every component to the minimum mass that still does its job for a year. The electrical infrastructure splits into three stages along the path the power takes. Collection cabling gathers the current from the panels, a converter steps the voltage up, and a trunk line carries it to where it is used. A closing section covers transporting and installing the materials.
I.1.1 Panel
The aim is to make every layer of the panel as thin as physics allows. Per-kilogram embodied energy sits within an order of magnitude across condensed-matter materials, while layer thicknesses vary by orders of magnitude. Mass per square meter is therefore the dominant lever for embodied energy, and the minimum-embodied-energy design pushes each layer to its functional floor.
The result is a thin polymer film, more like agricultural plastic mulch than a conventional solar module. It rolls out across the ground and is anchored with steel U-staples. Inside the polymer sandwich the active layers form a tandem cell, two perovskite absorbers stacked so the top captures visible light and the bottom the near-infrared that passes through. Thin aluminum oxide moisture barriers and silica abrasion-resistant hardcoats protect each face.
The table below gives the full bill of materials, top-to-bottom from the sun-facing side. Layers that appear twice in the stack — on both faces of the panel, or in both junctions of the tandem cell — are marked (×2), with mass and thickness shown as totals across both instances. The columns headed ε give each layer's embodied energy per kilogram: ε current for what today's processes spend to produce and form it, and ε Gibbs for the thermodynamic floor introduced in the materials section above. These figures include fabrication costs, such as extruding and laminating the polymer films or depositing the thin active layers, though typically such costs are small compared to costs for the chemical processes. The columns headed E give mass × ε, the energy that layer contributes per square meter of panel, shown both at current processes and at the floor.
Layer
Thickness
Mass (g/m²)
ε (MJ/kg): current
ε (MJ/kg): Gibbs
E (MJ/m²): current
E (MJ/m²): Gibbs
Purpose
Silica hardcoat (×2)
2.0 μm
4.0
15
0.002
0.060
0
scratch / abrasion resistance
Aluminum oxide barrier (×2)
2.0 μm
6.0
200
0.02
1.20
0
moisture barrier
Polypropylene front sheet
12 μm
10.8
28
16
0.30
0.17
mechanical + UV protection
Polyolefin elastomer encapsulant
50 μm
43.2
28
17.5
1.21
0.76
binds cell layers, impact buffer
AZO transparent top contact
100 nm
0.71
100
<0
0.071
0
top electrode
Tin oxide electron transport (×2)
60 nm
0.42
30
0.09
0.013
0
electron extraction
Wide-bandgap perovskite absorber
0.5 μm
2.14
60
<0
0.13
0
upper junction (visible)
Copper recombination contact
—
0.05
37
<0
0.002
0
current matching between junctions
Narrow-bandgap perovskite absorber
0.5 μm
2.65
60
<0
0.16
0
lower junction (NIR)
Nickel oxide hole transport (×2)
50 nm
0.24
45
2
0.011
0
hole extraction
Carbon back contact
3.0 μm
4.5
15
0
0.068
0
back electrode
Polyethylene back sheet
15 μm
13.8
28
17.5
0.39
0.24
mechanical, weather seal
Steel staples
—
11
13
7
0.14
0.077
wind-load anchoring
Film extrusion + lamination
—
—
—
—
0.32
0
Total
99.5
4.08
1.24
Entries marked "<0" are materials whose Gibbs free energy of synthesis from natural feedstock is technically negative: sulfide ores release more energy on oxidation to sulfuric acid than the metal reduction absorbs, and perovskite synthesis from elemental Pb, I, and Cs is slightly exothermic. In practice these floors are not approached because ore extraction and finite-rate process losses dominate.
Most of the panel's embodied energy is in the polyolefin and polypropylene polymer sheets — the front sheet, the encapsulant, and the back sheet — which together account for about half the total. These layers give the panel mechanical strength against thermal cycling and handling stress, and shield the active layers from UV degradation. The next-largest contributor is the aluminum oxide moisture barrier on each face, which keeps water away from the perovskite over a year of outdoor service. The per-kilogram energies for the deposited layers include the deposition step itself: each is built up from its Gibbs floor with a mature-process multiplier, and the barrier is costed for sputtering or atmospheric-pressure CVD rather than the slower atomic layer deposition used in flexible electronics today.
The perovskite absorbers themselves are only a small contributor to the panel's embodied energy. At 0.5 μm each, they barely register in mass terms, and they are not particularly energy intensive to make per unit mass. Their thickness is set by optical absorption: perovskite's band-edge absorption coefficient near cm⁻¹ means 0.5 μm absorbs about 99% of above-bandgap photons in a single pass, with comfortable margin against fabrication non-uniformity.
The module could operate at perhaps 25% efficiency under standard test conditions. Record perovskite/perovskite tandem cells have reached 28% in the lab (NREL Best Research-Cell Efficiency Chart); after cell-to-module losses, module efficiency comes in at 22–25%, against a Shockley-Queisser ceiling of about 46% for an ideal two-junction tandem (De Vos (1980)).
At a well-insolated site, average incident sunlight over the 24-hour cycle is about 200 W/m². With a 0.8 performance ratio — accounting for dust soiling, operating temperature above the 25 °C of standard test conditions, spectral mismatch, and resistive losses in module-internal wiring — the panel delivers W/m² of average delivered power. Losses in the collection cable, the power converter, and the trunk transmission line are accounted for separately in the sections that follow.
I.1.2 Collection cabling
Each sub-field is about one hectare, with a converter at its center. An insulated copper cable carries the panels' current the 30–50 m to it, sized by the current it must carry, thick enough that the peak noon current does not overheat it. Running the panels at 1500 V, the standard maximum for DC solar, keeps that current low and the cable thin. The mass breakdown, per m² of panel:
Component
Mass (g/m²)
ε (MJ/kg): current
ε (MJ/kg): Gibbs
E (MJ/m²): current
E (MJ/m²): Gibbs
Purpose
Copper edge busbars
0.1
37
<0
0.004
0
extracts current at panel edge
Copper collection cable
10
37
<0
0.37
0
carries current to converter
XLPE insulation
3
29
17.5
0.088
0.053
1500 V voltage isolation
Forming
—
—
—
0.05
0
wire drawing and insulation extrusion
Total
13
0.51
0.053
The copper cable dominates. Its insulation is thin, about 0.9 mm of cross-linked polyethylene to hold the 1500 V. Collection comes to about 12% of the panel's embodied energy. The cable is sized for the peak current, not the average, so adding storage and oversizing the panel field to charge it scales the collection mass up in step.
I.1.3 Power conversion
A solar field collects its power at 1500 V, but moving that power any distance needs a much higher voltage to keep the transmission conductor thin (I.1.4). A power converter bridges the two, stepping the voltage up. Each sub-field has a solid-state converter at its center. Its mass breakdown, per m² of panel:
Component
Mass (g/m²)
ε (MJ/kg): current
ε (MJ/kg): Gibbs
E (MJ/m²): current
E (MJ/m²): Gibbs
Purpose
Copper windings
13.5
37
<0
0.50
0
carries primary and secondary current
Amorphous-iron core
5.4
45
6.6
0.24
0.036
magnetic flux path between windings
Aluminum heat exchanger
4.9
76
29
0.37
0.14
removes switching and core losses
Silicon switching devices
4.0
66
8.0
0.26
0.032
chops input current at 2 kHz
Carbon-steel enclosure
2.6
13
6.6
0.034
0.017
structural housing and EMI containment
Winding and assembly
—
—
—
0.02
0
Total
30.4
1.43
0.23
The copper windings are the largest single cost. Their cross-section is set by the current they carry. At 7 A/mm² with liquid cooling, the wire holds a safe temperature over a year of service.
A converter today would use silicon carbide switches, but device-grade silicon carbide grows too slowly to reproduce in a fast-doubling economy, so we use silicon and accept a core about 2.7 times heavier. The converter comes to about a third of the panel's embodied energy, at a power density consistent with demonstrated solid-state transformers (Huber and Kolar (2019), Leibl, Ortiz and Kolar (2017)).
Like the collection cabling, the converter is sized for peak power rather than average. The silicon switches must handle the noon current, and storage downstream does not relax that.
I.1.4 Transmission
A transmission line requires a conductor to carry the current and insulation to prevent discharge to its surroundings. For a DC line carrying power over distance , the fractional resistive loss is
where is the resistivity of the conductor, its cross-section, and the per-pole voltage — 500 kV for the ±500 kV bipole used below. The conductor cross-section needed at a given loss target therefore scales as .
The ideal conductor maximizes conductance per unit of embodied energy. We use aluminum, the standard choice in essentially all transmission lines today; it self-passivates and hangs bare from the towers, with no insulating jacket. Sodium is somewhat better by that measure and was deployed in jacketed distribution cables in the 1960s, but its low melting point and water reactivity make it somewhat less practical, and the saving is modest.
There are two ways to insulate against the operating voltage: hold the conductor far enough from the ground that the air gap does not break down (overhead, on towers), or wrap it in a solid insulator (polymer jacket, laid on the ground). Either way, insulation cost grows with voltage — taller towers are heavier, thicker polymer is heavier — while conductor cost falls as . The total has a minimum at an intermediate voltage, around ±500 kV for overhead; the minimum is shallow, and choices within its flat region move the total by tens of percent. At the overhead optimum, per kW·km of power carried:
Component
Mass (g/kW·km)
ε (MJ/kg): current
ε (MJ/kg): Gibbs
E (MJ/kW·km): current
E (MJ/kW·km): Gibbs
Purpose
Aluminum conductor
2.9
76
29
0.218
0.084
carries current at ±500 kV
Steel messenger wire
0.2
13
6.6
0.003
0.001
mechanical support of conductor
Steel lattice towers
13.0
13
6.6
0.169
0.086
holds line at operating height
Porcelain insulators
0.08
11
0.02
0.0009
0.000
hangs conductor from towers
Forming
—
—
—
0.049
0.000
aluminum extrusion and stranding + tower fabrication (Ashby B6)
Total
16
0.44
0.16
The cross-section set by the formula above assumes a steady current. But a no-storage line carries the panels' raw output, zero at night and peaking at noon, and resistive loss grows with the square of the current, so holding the same loss target costs extra conductor. For a half-sine daily profile the penalty is , and a no-storage trunk needs about 2.5 times the conductor of a steady line carrying the same average power.
I.1.5 Storage
The total energy that can be stored in matter is limited by the strength of the chemical bonds holding the matter together. If you exceed this, the material will break. These same bond energies also determine the cost of producing the material in the first place. As a result, the embodied energy per stored energy capacity for a device tends to be much larger than one. The only way around this is to use a storage medium that is essentially free.
We use iron-air batteries. These reduce hematite — the most abundant iron ore on Earth — to metallic iron by alkaline electrolysis on charge, and re-oxidize the iron to Fe(OH)₂ in air on discharge. Hematite is essentially free, so the iron half of the cell is cheap. A minimal design for one-year service with daily cycling could look something like the following per MJ of storage delivered:
Component
Mass (g/MJ)
ε (MJ/kg): current
ε (MJ/kg): Gibbs
E (MJ/MJ): current
E (MJ/MJ): Gibbs
Purpose
Iron ore concentrate (Fe₂O₃)
480
0.15
0.01
0.073
0.005
active material
First-charge formation energy
—
—
—
1.44
0.64
unrecovered Fe³⁺ → Fe⁰ at commissioning
KOH electrolyte
65
3.7
0.81
0.24
0.053
ionic conduction
Carbon black gas-diffusion layer
22
8
0
0.18
0
air-electrode substrate
Fe-N-C ORR catalyst
2
50
0
0.10
0
O₂ reduction catalyst
Sintered Ni mesh + NiFeOOH OER
6
135
<0
0.81
0
O₂ evolution catalyst
Steel collectors / bipolar plates
9
13
6.6
0.12
0.060
current collection
FeS₂ hydrogen-evolution suppressant
4
3
3.1
0.012
0.012
suppresses H₂ evolution
Na₂S corrosion-suppressant additive
2
12
5.4
0.024
0.011
suppresses corrosion
Polyethylene housing and gaskets
7
28
17.5
0.20
0.12
containment and seal
Carbon-steel dry-cooler thermal management
31
12
6.6
0.37
0.20
rejects ~280 kW cycle-avg heat per sub-field
Assembly
—
—
—
0.25
0.013
construction energy
Total
628
3.8
1.1
The first-charge formation energy is the largest single cost. In normal operation, the cell cycles iron between Fe(OH)₂ and metallic Fe, transferring two electrons per atom. But the iron is loaded as hematite (Fe₂O₃), with the iron at a higher oxidation state still. Reducing it to metallic iron at commissioning takes three electrons per atom, and the extra one is paid once and never recovered.
The cell charges at about 1.55 V and discharges at about 1.0 V. That voltage gap, set by overpotentials at the two oxygen electrodes, gives a voltaic efficiency of about 65%, and coulombic and parasitic losses pull the round-trip down to about 55%. Sealed chemistries like lead-acid or lithium-ion avoid this and run at 85–90% but embody an order of magnitude more material per MJ stored. The biggest open assumption is Fe-N-C catalyst durability over the one-year service window. The catalyst has only been demonstrated over hundreds of hours, and falling back to simpler catalysts brings the efficiency to about 50%.
While alternative options for cheap power storage exist, they suffer other limitations. Pumped hydro and compressed-air storage at suitable geology can come in below 1 MJ per MJ, but viable reservoirs and salt caverns are scale-limited well short of what a self-replicating economy needs. Thermal storage in bulk rock or sand isn't site-limited, but the heat exchangers and turbines needed to convert it back to electricity bring the cost back to above 1 MJ per MJ, and the round-trip efficiency is low.
I.1.6 Transport and field deployment
Appendix B of Ashby (2021) gives the following estimates of the energetic cost to transport freight:
Mode
Energy (MJ/t·km)
Container ship (very large)
0.04
Bulk carrier
0.11
Rail freight (electric)
0.22
40-tonne truck
0.82
Long-haul aircraft
6.5
We take 0.3 MJ/t·km as an order-of-magnitude estimate of transportation costs, comparable to current rail costs. Slower transportation requires less energy but also increases time lags and physical capital requirements. The distances that the intermediate and final products must move depend on the specific geographical setup; for simplicity we assume an average of 1000 km which then increases the embodied energy of every component by 0.3 MJ/kg, generally negligible compared to production.
Once transported, the components must be installed. We cost the deploying machines as a roughly 1 kW field robot working for the time a human crew would take — the per-tonne install hours are from the man-hour tables in Storm (2019), so the deployment energy is just those hours run at 1 kW — with the panel laid continuously by its own rig instead:
Component
Install (h/t)
Field deployment (MJ/kg)
Solar panel
rig
0.043
Collection cable
5
0.018
Power converter
10
0.036
HVDC trunk cable
6
0.022
Transmission tower
24
0.086
Insulator string
30
0.108
Iron-air cell
8
0.029
Again these costs are negligible compared to those required for producing the materials.
<a id="i.2-lag-inventory"></a>
I.2 Lag inventory
The energy a step consumes is spent before the system makes any power, and it has to wait out not just that step but every step downstream of it. A step's lead time is therefore its own duration plus the durations of everything downstream. Collected into the energy-weighted lag distribution , these give the maximum-rate bound from Appendix H.2,
With robotic labor, just-in-time scheduling, and a co-located chain, a step's duration is just the time the material spends being transformed. Most steps are throughput-limited and take a few hours; the ones that take longer are rate-limited by chemistry, heat, or the day-night cycle:
Step
Duration (d)
What sets it
Copper / nickel electrorefining
7
deposition current density, held low to suppress dendrites
Storage deployment
2
field install, first charge, and wait for sunrise
Overhead-line deployment
1.5
span erection and commissioning
Panel-field deployment
1
layout and wait for sunrise
Porcelain firing
1
kiln firing and cooldown
Aluminum electrolysis
1
molten cryolite bath turnover
Billet cooling
0.75
air-cooling cast steel to a handleable temperature
Polymer cracking
0.5
reaction residence
About two-thirds of the committed energy sits at the one-to-two-day deployment floor, set by the wait for sunrise. Copper and nickel electrorefining, though the longest steps, feed thin conductors and contacts carrying about 4% of the energy, so they add only a small high-lag tail.
<a id="i.3-physical-capital-requirements"></a>
I.3 Physical capital requirements
The breakeven time of a plant is the energy embodied in it divided by the rate at which energy flows through it,
To estimate we use Claude Opus 4.8 to size the lightest plant that performs the step at today's process efficiency and lasts one year. One year comfortably exceeds the reproduction time, so the design is conservative; a faster-doubling fleet would replace each plant before it wore out and could build it lighter still (though in practice I think gains from pushing to even shorter lifespans are limited).
As an example, take the aluminum cell that makes the conductor metal. A Hall-Héroult pot built to last a year is a steel shell on a concrete pad, holding a molten cryolite bath with carbon electrodes and fed by its own rectifier; a plausible bill of materials is:
Component
Material
Mass (kg)
ε (MJ/kg)
Energy (GJ)
Carbon anode and cathode blocks
Graphite
44,850
35
1,570
Pot shell, cradle, collector bars, hoods
Carbon steel
27,000
13
360
DC busbar and rectifier aluminum
Aluminum
4,290
76
327
Molten cryolite working inventory
Na₃AlF₆–AlF₃
14,000
15
210
Furnace lining
Firebrick
24,700
3
74
Foundation pad
Concrete
86,400
0.8
71
Rectifier windings, switches, core
Cu / Si / Fe
540
—
22
Total
2,630
The pot turns out about 810 t of aluminum a year, which carries roughly 62 TJ of embodied energy, while the pot itself embodies 2.6 TJ. It therefore breaks even after days. By creating similar breakdowns for all 36 processes needed to produce the solar grid, we can produce the estimates of and found in the main text.
The breakeven times we estimate are design targets, and it is worth comparing them against the same quantity in today's economy. For a sector of the 2017 input-output tables, the analog of is the embodied electricity in the sector's capital stock divided by the embodied electricity in its annual intermediate flow, computed on the same electrified, emergency-utilization configuration as the main text. The table compares the ten largest contributors against their sector analogs:
Process
Breakeven (d)
BEA sector analog
Sector breakeven (d)
Ratio
Aluminum smelting cell
16
Alumina and primary aluminum
38
2.4
Transmission-tower fabrication
78
Coating and heat treating
84
1.1
Silicon power-device fab
151
Semiconductors
235
1.6
Copper smelt and refining
21
Nonferrous smelting and refining
72
3.4
Fe-N-C catalyst pyrolysis
150
Other basic inorganic chemicals
103
0.7
Final-leg transport fleet
38
Truck transportation
732
19
Field-deployment fleet
242
Nonresidential maintenance
68
0.3
Iron-air dry cooler
28
Air-conditioning and heating equipment
88
3.1
Iron-air cell assembly
40
Storage battery manufacturing
42
1.0
Nickel refining
12
Nonferrous smelting and refining
72
6
Most of the plants are assumed only modestly lighter than their present-day sector analogs, between one and six times, and two are heavier. The one large gap is transport, where the sector figure reflects today's duty cycles and the designed fleet runs around the clock. The field-deployment fleet comes out heavier than its analog because today's construction does with labor what the design must do with capital. The comparison is rough: a BEA sector is a dollar-weighted basket of many processes, so a single plant inherits its parent sector's average recipe, and the utilization adjustment does not reach non-manufacturing sectors like trucking.
We can also run the whole calculation at today's capital intensities. Substituting the system's bill of materials, valued at 2017 producer prices, into the input-output tables, so that the factories and their upstream supply chains carry the capital of today's economy wholesale, gives a bound of 7.8 yr⁻¹ for the 1000 km storage design, a doubling time of 32 days against the 13 days of the main text. Part of the difference is the lighter plants; part is that the input-output substitution also charges upstream sectors that the minimal chain does not require. Even built with today's factories, the system could double in about a month.
The breakeven times above carry no lags. But like every other input, a plant's embodied energy must be committed before the plant is operational, and energy committed a time ahead is more expensive by a factor . The same correction applies to the factories as to the grid they build. With 36 distinct plants, though, tracing each one's supply chain in the same detail is impractical, so we simplify. For each plant we estimate the total time to build it and assume its energy is committed evenly across that time, which inflates its contribution by the average of over the build.
We had Claude estimate the build time for each plant, split into three parts: producing the plant's own materials, constructing and assembling the facility, and commissioning it. Producing the materials takes a day or two and the construction and assembly a week or two; commissioning is quick except for the high-temperature plants, which must bring their refractory lining up to temperature slowly enough not to crack it, adding one to two weeks. In all the build runs two to three weeks for most plants, and up to five for the hottest, the aluminum cell and the porcelain kiln.
In Parts 1, 2, and 3 we estimated how fast a post-AGI economy could grow using existing or historically observed production techniques, grounded in US input-output data. That approach gave us confidence that the methods we assumed were physically realizable, because they correspond to manufacturing processes that have run at scale in the past or run today. Now I would like to relax that constraint, and ask how much faster the economy could grow using more advanced technology.
In this part, we will consider energy production. Every physical process consumes energy, and it takes energy to build the production and distribution system that generates energy. The energy payback time (EPBT)
We investigate what energy system minimizes the energy payback time, subject to being plausibly constructible on Earth using known physical methods, optimized for rapid production in a post-AGI regime, and allowing for decades of engineering advances. The payback time is bounded below by two physical quantities: the mass of material each function requires, and the energy it takes to produce each kilogram of material. Neither can be pushed below its physical and engineering limits, however advanced the technology. We bracket out for now atomically precise manufacturing and other speculative technologies.
This series grew out of a project initiated by Holden Karnofsky, with substantial earlier work by Constantin Arnscheidt and Adin Richards. I'm grateful for comments on this post and/or earlier iterations of the project from Holden, Constantin, Adin, Paul Christiano, and Tom Davidson. Thanks also to Claude Opus 4.7 and 4.8 for help with all aspects of this project.
With current technology, energy production is the most tightly bottlenecked sector
Every sector in an economy produces goods for every other sector, including itself. Energy production requires energy, but steel mills also require steel, and machinery is produced using machinery. The payback time for a sector is the time required for the capital in that sector to produce enough output to replace itself, including all inputs that flow in indirectly through the production cascade. Each sector's payback time provides an upper bound on the overall growth rate. Appendix H.1 derives this bound and sets out how the payback times are computed.
Using the BEA 2017 input-output tables and the same setup as Part 3 — robots and compute replacing human labor, factories operating at emergency utilization, and removing capital that only exists to service human labor — we can calculate the payback time of each sector. The left side of the table shows current technology. The right side shows an electrified economy where fossil-fuel energy inputs are replaced with electricity and the electric power sector is built from utility-scale solar panels. The bottom row shows the Von Neumann growth rate
The sectors involved in energy production — oil and gas extraction and electric power generation — have the longest payback times of any sector. This is particularly clear for the electrified economy where solar panels are used to generate power: electric power generation alone becomes the binding sector, with a payback time of 1.6 years, well above any other sector and close to the full-system growth rate at the bottom of the table. Fossil fuels would allow faster growth but would lead to vast CO
We can compare our numbers to energy payback times estimated in the literature, computed bottom-up from a technology's embodied energy and output:
The delivered column counts the output as the electricity produced, which is the one most relevant for our purposes. The primary column shows the more common LCA primary energy convention (Frischknecht et al. (2020)), which measures the thermal energy required to produce that electricity. These bottom-up estimates broadly match the IO-derived payback times, showing energy payback times are around one year across present-day energy production methods.
While energy production is the most binding of the sectors, it is not the only constraint. If energy were entirely free in the IO model — zeroing all energy inputs — the maximum growth rate rises from 1.15 to about 1.5 yr⁻¹. Once energy is free, the capital-goods sectors that build everything else, such as machine tools and steel, become the binding constraint instead. Speeding up energy production is necessary for fast growth, but not sufficient on its own.
Making materials requires energy
Producing materials from the raw resources available in the Earth's crust and atmosphere requires some minimum amount of energy. The second law of thermodynamics sets a hard lower bound on the energy required for any given transformation, called the Gibbs free energy of synthesis, which can be calculated from standard thermochemical tables.
The energy that current industrial processes actually consume to produce a kilogram of material — its embodied energy — lies above the Gibbs minimum. Embodied energy is conventionally reported in primary-energy terms, counting electricity at the fuel needed to generate it rather than at its delivered value. The values plotted below are taken from the engineering materials database in Ashby (2021) and inherit this convention.
Figure 1. Embodied energy of production (from Ashby (2021) Appendix B) vs the thermodynamic floor on synthesis from natural feedstock (computed from CRC thermochemistry dataset) for 123 materials. (a) Full range. Left-edge markers show the 11 materials with negative Gibbs floors. (b) Zoom on the bulk of the data, where bulk metals, polymers, ceramics, and electronics cluster.
Most materials have Gibbs floors between a few MJ/kg and a few tens of MJ/kg, as determined by the basic thermochemistry of reducing elements from their naturally occurring forms. The exceptions are materials like cement, whose feedstock is already in the oxidation state of the finished product, and sulfide-derived metals like copper, where the oxidation of sulfur to sulfuric acid releases more energy than the metal reduction consumes, making the net Gibbs free energy negative.
Bulk industrial processes are already fairly close to their thermodynamic floors. The figure makes the gap look larger than it really is, because embodied energy is reported in primary-energy terms and includes the thermal-conversion inefficiencies of fossil-fueled electricity and heat. Under directly electrified inputs, much of that gap closes. World best practice energy intensity for iron and aluminum is within a factor of about two of the Gibbs floor (Worrell et al. (2008)), and these ratios have barely moved in decades of sustained engineering effort. Pushing energy efficiency closer to the thermodynamic floor typically requires more sophisticated equipment, such as additional heat-recovery stages, and more controlled reaction environments, which increases the physical capital cost of the plant itself. Improvement is often difficult even where current methods sit far above the floor; titanium, for example, is still made by the same energy-intensive process because every attempt to replace it has failed.
The gap between current embodied energy and the Gibbs floor varies widely by material. For some materials the gap is dominated by the thermodynamic cost of concentrating a dilute resource from bulk ore. As an example, mining copper requires processing roughly 200 tonnes of rock per tonne of metal, and the energy cost of that comminution dwarfs the synthesis chemistry (Ballantyne and Powell (2014)). For others, finite-rate process irreversibilities and heat losses account for most of the difference (Bejan (1996)), and further improvements are either difficult or uneconomical.
A minimal solar power system could pay back its embodied energy in days
Our aim is to estimate the embodied energy of a minimal energy production and transmission system, aggressively designed for rapid reproduction. Solar, fossil fuels, and nuclear could all in principle power a much larger economy; other options like wind or hydro are too limited in scale. At the physics floor, all three have payback times on a similar scale of days to weeks. We focus on solar because the other two have practical constraints that make them poor candidates for sustained rapid growth. Fossil fuels are finite in supply and produce CO
A complete solar power system has three types of component, each with its own physical floor on embodied energy:
We design every component for one year of service rather than the twenty-five years typical of current solar installations. Today's silicon panels at utility scale take about a year to pay back their embodied energy, but most of their mass exists to support decades of outdoor durability. In an economy whose energy fleet doubles every few months, each cohort only needs to outlive its own replication time and so it is more efficient to create short-lived panels. Some components require technology that is not yet commercially scaled — most notably perovskite tandem absorbers — but the design is optimized to minimize energetic costs. The design was developed with the help of Claude Opus 4.7; Appendix I.1 works through each component in detail.
The table below shows the embodied energy breakdown and energy payback time for the complete system at different transmission distances, at both current embodied energies and the Gibbs floor.
The energy payback time is sensitive to transmission distance: at 1000 km with storage, it is about 10 days at current embodied energies and 3 days at the Gibbs floor. Storage adds cost at short distances but saves conductor mass at long distances, with the crossover between 500 and 1000 km. While the precise numbers should not be taken too seriously, the embodied energies are spread across many materials and components and so an O(10-day) payback seems fairly robust even given the uncertainties. The Gibbs floor is roughly three to four times lower than current embodied energies across all configurations.
Energy payback is one constraint on a solar buildout. Material supply is another, and does not bind until the buildout is very large. The table below shows the mass of each potentially-constraining element required to build the system at four deployment scales, against world reserves and resources.
Reserves and resources are from USGS MCS 2026, while fossil carbon is from OPEC (2025) and the Energy Institute (2024). As we can see, iodine and cesium exhaust current reserves around 100 TW, a few doublings of world power. Iodine could be extracted from seawater if necessary, albeit at higher cost; obtaining cesium could be more challenging, but is only needed for the perovskite active layer; alternative designs with no cesium should be possible. Tin binds near 1 PW, while copper would begin to bind only once most land area has been covered and other elements are available in abundance.
As the payback time shrinks, supply-chain lags become the binding constraint
The EPBT calculation in the previous section divides cumulative energy out by cumulative energy in, with no attention to when the energy is committed. In reality, it takes time to process and transport materials, which means that this energy must be committed days or weeks prior to first power production. For an exponentially-growing economy, energy committed at lag
To compute the lag-adjusted rate
The table reports
The mean lag is short because little time is required to physically manufacture and assemble the parts given an abundance of robotic labor, no transport delays, and just-in-time manufacturing. The longest individual steps are copper and nickel electrorefining at about a week each, but they feed mass-light components carrying little of the system's energy, so they barely move
Even with AGI, some dead time will occur at each link in the supply chain. We model it as a transport time, but it stands for every per-link delay not already counted in a step's processing — loading, storage, transfer, and literal transport alike. Figure 2 shows how the growth rate falls as we add a fixed such delay to every link in the supply chain, in our 1000 km scenario:
Figure 2. Maximum sustainable growth rate \lambda^* as a function of uniform transport and dead time per link, for the 1000 km transmission scenario at current embodied energies. Each piece of energy passes through two to three transport layers between raw extraction and deployment, so the effective lag stretch is two to three times the per-link transit time.
A few days per link would already outweigh the day or two of physical processing, so beyond short delays the lag is set by these per-link times rather than by fabrication. Even with ten days per link the shortest doubling time remains on the scale of weeks. With co-located factories and with AGI optimization I expect most delays could be reduced to less than a day, though some raw material might need to be transported longer distances.
Even counting the factories, energy production does not preclude doubling in weeks
So far we have estimated the energy required to expand the capacity of the electrical grid. But the grid is built by factories and machines that mine, smelt, manufacture, transport, and assemble everything, and building that capital takes energy too.
Consider a product that takes
But in a rapidly growing economy we do not have time to amortize over the lifespan of the capital. If the economy grows exponentially at rate
Building a solar grid takes many distinct processes, and each one is a machine of exactly this kind. Step
As described in Appendix I.3, we estimate breakeven times
From this, we can compute that
Extending to all four designs, with the no-storage cases carrying a peak-sizing penalty on their daylight-only building capital:
The lagged columns also charge the time it takes to build the factories, on top of the supply-chain lags carried over from the previous section. A plant has to produce its own materials, be assembled, and be brought up to operating temperature before it makes anything, and that delay inflates its embodied energy by the same
The estimates so far assume co-located production. In practice the materials feeding both the grid and the factories that build it move between processing steps, and every leg adds dead time. Figure 3 shows the bound falling with transport and dead time per link for all four designs, charging transport on the grid's materials and the factories' alike. Across all four designs the shortest doubling time stays between about ten days and a month, even allowing twelve days of transport delay on every link in the chain.
Figure 3. Maximum growth rate
Discussion
A minimal solar generation and distribution system, designed for fast reproduction rather than long service, can generate enough energy to reproduce itself on the scale of weeks. That holds even after including construction lags, the transport of materials, and the physical capital of the factories that build it. That is an order of magnitude faster than present-day energy production. The system is not especially sophisticated. It needs abundant robot labor and a few technologies that are not yet deployed at scale, most notably perovskite tandem cells, but the main lever is just optimizing for low material use and accepting short lifetimes in return.
Whether the whole economy can double this fast turns on whether some other sector binds harder than energy. Given our estimated costs for mining and smelting in the appendices, and payback times for the associated sectors in present-day input-output tables, I think these are unlikely to substantially slow growth. However, creating more complex machinery like transportation devices, robots, and silicon chips requires much longer supply chains and more advanced manufacturing processes. It seems plausible that these could be more constraining, but they are harder to reason about from first principles than energy production or bulk resource acquisition.
Could it go faster still? Biology shows that much faster self-replication is possible. The fastest cyanobacteria and microalgae double every couple of hours in good conditions. But they cannot generate electricity, hold stable macroscopic structure, or move energy over long distances, so nothing algae-like could power a real economy.
Advanced nanotechnology need not share biology's limitations, but it does not escape the physics either. A nanotech system that stores power overnight and moves it across the country pays the same storage and transmission costs that dominate our estimate; its batteries are bound by the same bond energies and its conductors by the same transport physics, and it stays in the weeks-scale regime we have estimated. But if the nanotechnological economy can avoid transport and perform all of its tasks locally, then the binding constraint becomes the thickness of the solar panels themselves, and we cannot rule out doubling times of several days for energy production from energetic cost considerations alone.
Appendix H: Mathematical foundations
<a id="h.1-payback-time-and-the-growth-bound"></a>
H.1 Payback time and the growth bound
In Part 1, Appendix A, we introduced the input-output description of the economy, in which the matrices
where the associated eigenvector
Every entry of
In the main text, we focus on the energy production sector
<a id="h.2-inputs-committed-at-distributed-times"></a>
H.2 Inputs committed at distributed times
The most general way to treat lags is to let the input-output coefficients depend on the time
with each flow referenced at the time
where we define
As in the previous section, we can upper bound
Appendix I: The solar electricity system
<a id="i.1-system-design"></a>
I.1 System design
The main text described the system as three components — the panel, the electrical infrastructure, and storage. This appendix sizes each in detail, designing every component to the minimum mass that still does its job for a year. The electrical infrastructure splits into three stages along the path the power takes. Collection cabling gathers the current from the panels, a converter steps the voltage up, and a trunk line carries it to where it is used. A closing section covers transporting and installing the materials.
I.1.1 Panel
The aim is to make every layer of the panel as thin as physics allows. Per-kilogram embodied energy sits within an order of magnitude across condensed-matter materials, while layer thicknesses vary by orders of magnitude. Mass per square meter is therefore the dominant lever for embodied energy, and the minimum-embodied-energy design pushes each layer to its functional floor.
The result is a thin polymer film, more like agricultural plastic mulch than a conventional solar module. It rolls out across the ground and is anchored with steel U-staples. Inside the polymer sandwich the active layers form a tandem cell, two perovskite absorbers stacked so the top captures visible light and the bottom the near-infrared that passes through. Thin aluminum oxide moisture barriers and silica abrasion-resistant hardcoats protect each face.
The table below gives the full bill of materials, top-to-bottom from the sun-facing side. Layers that appear twice in the stack — on both faces of the panel, or in both junctions of the tandem cell — are marked (×2), with mass and thickness shown as totals across both instances. The columns headed ε give each layer's embodied energy per kilogram: ε current for what today's processes spend to produce and form it, and ε Gibbs for the thermodynamic floor introduced in the materials section above. These figures include fabrication costs, such as extruding and laminating the polymer films or depositing the thin active layers, though typically such costs are small compared to costs for the chemical processes. The columns headed E give mass × ε, the energy that layer contributes per square meter of panel, shown both at current processes and at the floor.
Entries marked "<0" are materials whose Gibbs free energy of synthesis from natural feedstock is technically negative: sulfide ores release more energy on oxidation to sulfuric acid than the metal reduction absorbs, and perovskite synthesis from elemental Pb, I, and Cs is slightly exothermic. In practice these floors are not approached because ore extraction and finite-rate process losses dominate.
Most of the panel's embodied energy is in the polyolefin and polypropylene polymer sheets — the front sheet, the encapsulant, and the back sheet — which together account for about half the total. These layers give the panel mechanical strength against thermal cycling and handling stress, and shield the active layers from UV degradation. The next-largest contributor is the aluminum oxide moisture barrier on each face, which keeps water away from the perovskite over a year of outdoor service. The per-kilogram energies for the deposited layers include the deposition step itself: each is built up from its Gibbs floor with a mature-process multiplier, and the barrier is costed for sputtering or atmospheric-pressure CVD rather than the slower atomic layer deposition used in flexible electronics today.
The perovskite absorbers themselves are only a small contributor to the panel's embodied energy. At 0.5 μm each, they barely register in mass terms, and they are not particularly energy intensive to make per unit mass. Their thickness is set by optical absorption: perovskite's band-edge absorption coefficient near
The module could operate at perhaps 25% efficiency under standard test conditions. Record perovskite/perovskite tandem cells have reached 28% in the lab (NREL Best Research-Cell Efficiency Chart); after cell-to-module losses, module efficiency comes in at 22–25%, against a Shockley-Queisser ceiling of about 46% for an ideal two-junction tandem (De Vos (1980)).
At a well-insolated site, average incident sunlight over the 24-hour cycle is about 200 W/m². With a 0.8 performance ratio — accounting for dust soiling, operating temperature above the 25 °C of standard test conditions, spectral mismatch, and resistive losses in module-internal wiring — the panel delivers
I.1.2 Collection cabling
Each sub-field is about one hectare, with a converter at its center. An insulated copper cable carries the panels' current the 30–50 m to it, sized by the current it must carry, thick enough that the peak noon current does not overheat it. Running the panels at 1500 V, the standard maximum for DC solar, keeps that current low and the cable thin. The mass breakdown, per m² of panel:
The copper cable dominates. Its insulation is thin, about 0.9 mm of cross-linked polyethylene to hold the 1500 V. Collection comes to about 12% of the panel's embodied energy. The cable is sized for the peak current, not the average, so adding storage and oversizing the panel field to charge it scales the collection mass up in step.
I.1.3 Power conversion
A solar field collects its power at 1500 V, but moving that power any distance needs a much higher voltage to keep the transmission conductor thin (I.1.4). A power converter bridges the two, stepping the voltage up. Each sub-field has a solid-state converter at its center. Its mass breakdown, per m² of panel:
The copper windings are the largest single cost. Their cross-section is set by the current they carry. At 7 A/mm² with liquid cooling, the wire holds a safe temperature over a year of service.
A converter today would use silicon carbide switches, but device-grade silicon carbide grows too slowly to reproduce in a fast-doubling economy, so we use silicon and accept a core about 2.7 times heavier. The converter comes to about a third of the panel's embodied energy, at a power density consistent with demonstrated solid-state transformers (Huber and Kolar (2019), Leibl, Ortiz and Kolar (2017)).
Like the collection cabling, the converter is sized for peak power rather than average. The silicon switches must handle the noon current, and storage downstream does not relax that.
I.1.4 Transmission
A transmission line requires a conductor to carry the current and insulation to prevent discharge to its surroundings. For a DC line carrying power
where
The ideal conductor maximizes conductance per unit of embodied energy. We use aluminum, the standard choice in essentially all transmission lines today; it self-passivates and hangs bare from the towers, with no insulating jacket. Sodium is somewhat better by that measure and was deployed in jacketed distribution cables in the 1960s, but its low melting point and water reactivity make it somewhat less practical, and the saving is modest.
There are two ways to insulate against the operating voltage: hold the conductor far enough from the ground that the air gap does not break down (overhead, on towers), or wrap it in a solid insulator (polymer jacket, laid on the ground). Either way, insulation cost grows with voltage — taller towers are heavier, thicker polymer is heavier — while conductor cost falls as
The cross-section set by the formula above assumes a steady current. But a no-storage line carries the panels' raw output, zero at night and peaking at noon, and resistive loss grows with the square of the current, so holding the same loss target costs extra conductor. For a half-sine daily profile the penalty is
I.1.5 Storage
The total energy that can be stored in matter is limited by the strength of the chemical bonds holding the matter together. If you exceed this, the material will break. These same bond energies also determine the cost of producing the material in the first place. As a result, the embodied energy per stored energy capacity for a device tends to be much larger than one. The only way around this is to use a storage medium that is essentially free.
We use iron-air batteries. These reduce hematite — the most abundant iron ore on Earth — to metallic iron by alkaline electrolysis on charge, and re-oxidize the iron to Fe(OH)₂ in air on discharge. Hematite is essentially free, so the iron half of the cell is cheap. A minimal design for one-year service with daily cycling could look something like the following per MJ of storage delivered:
The first-charge formation energy is the largest single cost. In normal operation, the cell cycles iron between Fe(OH)₂ and metallic Fe, transferring two electrons per atom. But the iron is loaded as hematite (Fe₂O₃), with the iron at a higher oxidation state still. Reducing it to metallic iron at commissioning takes three electrons per atom, and the extra one is paid once and never recovered.
The cell charges at about 1.55 V and discharges at about 1.0 V. That voltage gap, set by overpotentials at the two oxygen electrodes, gives a voltaic efficiency of about 65%, and coulombic and parasitic losses pull the round-trip down to about 55%. Sealed chemistries like lead-acid or lithium-ion avoid this and run at 85–90% but embody an order of magnitude more material per MJ stored. The biggest open assumption is Fe-N-C catalyst durability over the one-year service window. The catalyst has only been demonstrated over hundreds of hours, and falling back to simpler catalysts brings the efficiency to about 50%.
While alternative options for cheap power storage exist, they suffer other limitations. Pumped hydro and compressed-air storage at suitable geology can come in below 1 MJ per MJ, but viable reservoirs and salt caverns are scale-limited well short of what a self-replicating economy needs. Thermal storage in bulk rock or sand isn't site-limited, but the heat exchangers and turbines needed to convert it back to electricity bring the cost back to above 1 MJ per MJ, and the round-trip efficiency is low.
I.1.6 Transport and field deployment
Appendix B of Ashby (2021) gives the following estimates of the energetic cost to transport freight:
We take 0.3 MJ/t·km as an order-of-magnitude estimate of transportation costs, comparable to current rail costs. Slower transportation requires less energy but also increases time lags and physical capital requirements. The distances that the intermediate and final products must move depend on the specific geographical setup; for simplicity we assume an average of 1000 km which then increases the embodied energy of every component by 0.3 MJ/kg, generally negligible compared to production.
Once transported, the components must be installed. We cost the deploying machines as a roughly 1 kW field robot working for the time a human crew would take — the per-tonne install hours are from the man-hour tables in Storm (2019), so the deployment energy is just those hours run at 1 kW — with the panel laid continuously by its own rig instead:
Again these costs are negligible compared to those required for producing the materials.
<a id="i.2-lag-inventory"></a>
I.2 Lag inventory
The energy a step consumes is spent before the system makes any power, and it has to wait out not just that step but every step downstream of it. A step's lead time is therefore its own duration plus the durations of everything downstream. Collected into the energy-weighted lag distribution
With robotic labor, just-in-time scheduling, and a co-located chain, a step's duration is just the time the material spends being transformed. Most steps are throughput-limited and take a few hours; the ones that take longer are rate-limited by chemistry, heat, or the day-night cycle:
About two-thirds of the committed energy sits at the one-to-two-day deployment floor, set by the wait for sunrise. Copper and nickel electrorefining, though the longest steps, feed thin conductors and contacts carrying about 4% of the energy, so they add only a small high-lag tail.
<a id="i.3-physical-capital-requirements"></a>
I.3 Physical capital requirements
The breakeven time of a plant is the energy
To estimate
As an example, take the aluminum cell that makes the conductor metal. A Hall-Héroult pot built to last a year is a steel shell on a concrete pad, holding a molten cryolite bath with carbon electrodes and fed by its own rectifier; a plausible bill of materials is:
The pot turns out about 810 t of aluminum a year, which carries roughly 62 TJ of embodied energy, while the pot itself embodies 2.6 TJ. It therefore breaks even after
The breakeven times we estimate are design targets, and it is worth comparing them against the same quantity in today's economy. For a sector of the 2017 input-output tables, the analog of
Most of the plants are assumed only modestly lighter than their present-day sector analogs, between one and six times, and two are heavier. The one large gap is transport, where the sector figure reflects today's duty cycles and the designed fleet runs around the clock. The field-deployment fleet comes out heavier than its analog because today's construction does with labor what the design must do with capital. The comparison is rough: a BEA sector is a dollar-weighted basket of many processes, so a single plant inherits its parent sector's average recipe, and the utilization adjustment does not reach non-manufacturing sectors like trucking.
We can also run the whole calculation at today's capital intensities. Substituting the system's bill of materials, valued at 2017 producer prices, into the input-output tables, so that the factories and their upstream supply chains carry the capital of today's economy wholesale, gives a bound of 7.8 yr⁻¹ for the 1000 km storage design, a doubling time of 32 days against the 13 days of the main text. Part of the difference is the lighter plants; part is that the input-output substitution also charges upstream sectors that the minimal chain does not require. Even built with today's factories, the system could double in about a month.
The breakeven times above carry no lags. But like every other input, a plant's embodied energy must be committed before the plant is operational, and energy committed a time
We had Claude estimate the build time for each plant, split into three parts: producing the plant's own materials, constructing and assembling the facility, and commissioning it. Producing the materials takes a day or two and the construction and assembly a week or two; commissioning is quick except for the high-temperature plants, which must bring their refractory lining up to temperature slowly enough not to crack it, adding one to two weeks. In all the build runs two to three weeks for most plants, and up to five for the hottest, the aluminum cell and the porcelain kiln.
