Running an air purifier on a battery could be really useful in an
emergency that combined a biological or nuclear threat with a power
outage. Getting one that can run on 12V DC and attaching it to a
LiFePO4 battery is about $188 (plus $164 for the purifier) for
something that will give you 141 CFM for over a week.
I've been thinking about DIY biohardening, primarily to reduce risks
from environment-to-human
threats, and a lot of what's
out there assumes the power grid stays up. This doesn't seem like
a good assumption: even if society does a fantastic job protecting
essential workers and prioritizing keeping the grid up, I expect many
more outages than we have today, and longer ones. If an outage means
you lose positive pressure and get sick, that's really very bad!
If I needed to build a DIY cleanroom today, I'd start with my AirFanta
3Pro. While it being HEPA is overkill for
cleaning the air that's already in a space, it's great if your goal is
to clean air as it enters a space.
The simplest option is to buy a portable power supply. I have the
1,056 Wh Anker
SOLIX c1000 and at $450 on Amazon it's comes to $0.43 / Wh. If I
trust AliExpress, I could maybe get it for
$322 ($0.31 / Wh). These look to be pretty typical for portable
power supplies, and I like that the SOLIX supports solar charging.
Another option would be deep cycle AGM lead-acid batteries. This is
what I went with in 2018.
Doing some reading now, though, it seems like they're rarely worth it
anymore. A 100Ah AGM, which you should really only take 50 Ah of,
is $160,
and a 100Ah LiFePO4, which can be discharged down to 80-100%, is $147.
Plus the LiFePO4 is less than half the weight: 24lb vs 57lb.
Unlike the portable power supply, version, this requires assembling a
few components:
A coulomb counter shunt, which tells you how much power you've
drawn so you know how much is available and whether you're almost
out. ($16.19)
A fuse holder and fuses, so a short circuit doesn't start a fire
or destroy your battery. ($1.70)
Connectors, so you can easily connect and disconnect without
worrying about messing up polarity and destroying something. ($4.66)
Charger, so you can bring the battery back up to
full when you have access to power again. ($18.99)
I already had all of this from my earlier inverter project, except for
the fuse (integrated into the inverter) and connector to the AirFanta
(which takes a 5.5mm x 2.5mm center-positive barrel jack). Hooking
it all up, I can run my AirFanta off grid:
If I didn't already have most of this, I'd have been spending $188 for
1280 Wh, or $0.15 / Wh. This is much better than the portable
power supply, it also provides much less: I can only use it to power
things with 12V DC.
Now, you might imagine someone would sell a box that wraps a battery
and provides these extras so you don't need to DIY anything, but as
far as I can tell this doesn't quite exist. People sell "battery box
power centers" for use on boats, but they don't measure how much power
you've drawn. With a modern LiFePO4 battery this is a big issue,
because you can't really estimate power from voltage. These boxes
also don't provide charging: on a boat that's not a feature you're
looking for. So I think full featured portable power supplies and DIY
setups are the two main options.
Personally, I'm glad to have both systems:
The Anker SOLIX portable power supply is much more flexible: it
powers things over AC, provides USB ports, charges very quickly from
the wall if power is available, and can be recharged by solar.
The DIY 12v system is simpler, less likely to break, modular
and easy to fix, and cheaper. If I want to go bigger, I can expand my
total capacity just by buying additional batteries at $0.11 / Wh.
I can also move power between the two systems with relatively low
losses, to take advantage of flexibility or capacity as needed.
I'd really like to know how much power this would draw and how long I
could run it for, but without actually building something and taking
measurements all I can do is estimate. A big question is whether it
could get to useful levels of pressurization: I don't think it would
get anywhere close to +75 Pa, but maybe +10 Pa would still be possible
and good enough if we can avoid wind by pressurizing something inside
an existing building? For now I'll set all that aside and look just
at the case that's easy for me to work with: running the air purifier
as it's designed to be operated.
So: how long can I run the AirFanta for? What setting should I
use if I want to maximize my clean air delivery rate (CADR)?
The manufacturer gives power and
throughput numbers, but I expect slightly lower power usage from
running it directly on DC. They report 33.2W on the highest setting
while I measured 29.2W, so this looks like a factor of 14%, just
around where you'd expect. Scaling down by that factor, and
calculating CFM per Watt, I get:
Setting
Power (W)
CFM
CFM/W
1
1.93
57
30
2
4.12
141
34
3
9.74
247
25
4
16.58
321
19
5
24.04
374
16
6
29.12
413
14
You can see that setting 2 is the most efficient but also produces
less air: if you have unlimited purifiers you should run them all on
2, but if you need more output you might need to run them higher to
get sufficient CADR.

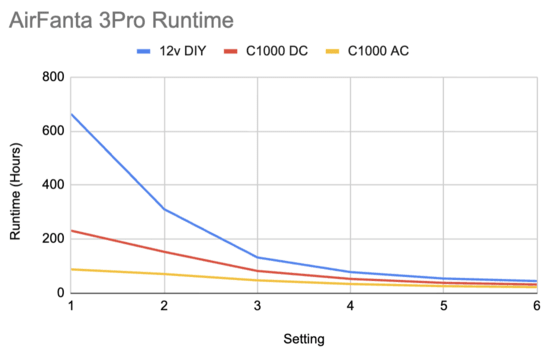

We can also estimate the runtime we'd get at different speeds. I'll
model the 12v DIY system as a 100Ah LiFePO4 12.8v cell (1,280 Wh)
while the Anker C1000 is 1,056 Wh. [1] I'm estimating that the C1000
loses 2.5W just by being on, an additional 7W if it needs to run the
inverter, loses 7% on DC-DC conversion (12V port) and 14% on DC-AC
conversion (AC outlets). So I'll model the 12V DIY system, the C1000
via the 12V port, and the C1000 via the AC ports (where we then lose
another 14% on AC-DC conversion):
Setting
12 DIY
C1000 DC
C1000 AC
1
663
231
87
2
310
152
70
3
131
81
47
4
77
52
33
5
53
37
25
6
44
31
22
The effect of overhead on runtime is substantial, especially at low
draw. On setting #2, producing 141 CFM, the DIY system should be able
to run for just under thirteen days, the C1000 with DC for just over
six, and the C1000 with AC for a little less than three. At higher
draw this is less of a concern, since if the fan needs 29W losing 2.5W
(or even 9.5W) to overhead matters less.
This pushes the analysis much more in the direction of the DIY system,
especially if lower current is enough.
[1] Because the LiFePO4 cell has charge limiting circuitry built in,
it's ok to run it to 0%: it will just shut off. While you shouldn't
store it fully discharged, in this case I'm imagining we recharge it
promptly. This means we get the full capacity from both batteries.
